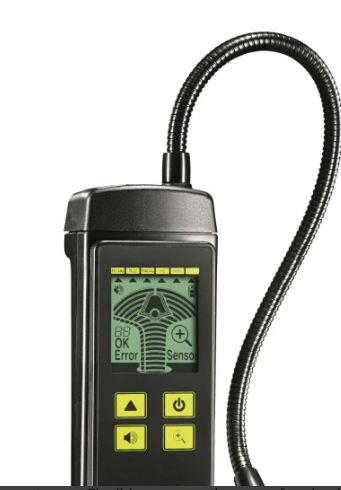

Testo 316-2 Gas leak detector

18-step bar for displaying gas concentration; additional maximum leakage display
Quick reaction time with built-in pump
Flexible gooseneck sensor for checking hard-to-reach pipes and places
Rechargeable batteries for longer performance
Speedy and sure gas leak detection. The testo 316-2 provides you with a quick and reliable means of detecting methane, propane and hydrogen in the surrounding air. The gas concentration is displayed in the form of an easy-to-read bar and an alarm is triggered when a threshold is crossed.
Product Code: Testo 316-2
Brand: Testo
Availability: In Stock

Related Products

Technical data

General technical data

Operating humidity
20 to 80 %RH
Weight
348 g
Reaction time
t₉₀ < 2="" />
Dimensions
190 x 57 x 42 mm (without sensors)
Operating temperature
-5 to +50 °C
Heat up time
60 s
Battery type
NiMH battery
Battery life
6 h
Display type
18_segment_bar_display
Storage temperature
-25 to +60 °C

Methane (CH₄)


Measuring range
10 ppm to 4.0 Vol.%
Lower response threshold
10 ppm
1st alarm limit
200 ppm
2nd alarm limit
10000 ppm
