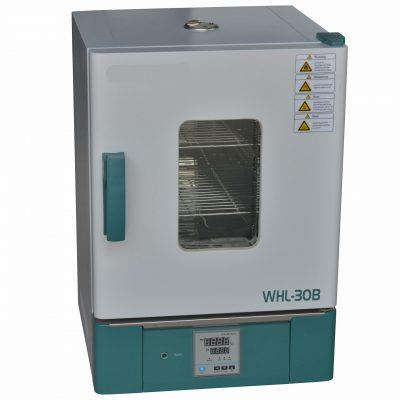

Constant-temperature Drying Oven (Used for drying, baking, heat treatment)

Product characteristic:

1. In the workroom, the hot air is convective naturally and cyclically.

2. PID micro-computer intelligent temperature controller with functions of over-temperature protection.

3. Standard highlight LED instrument running light.

4. New anti-hot handle.



WHLL-BE series have the following characteristics other than the above functions.

1. LCD temperature controller. SSR to make sure the safety

2. Over-temperature protection system

3.High precision digital independent temperature limiter
Product Code: WGL-45B
Brand: Faithful
Availability: In Stock
Rs. 130,000 Rs. 150,000
You save Rs. 20,000 (13% Off)
WGL-45B
WGL-65B
ModelWHL-
30B		WHL-
45B		WHL-
65B		WHL-
85B		WHL-
125B
WHLL-
30BE		WHLL-
45BE		WHLL-
65BE		WHLL-
85BE		WHLL-
125BE
Cycle ModeNatural convection
FunctionTemp. RangeRT+10-300℃
Temp.Resolution Ratio0.1℃
Temp. Motion±1℃
Temp. Uniformity±3.5%
StructureInner ChamberMirror Stainless Steel
Outer ShellCold rolling steel electrostatic spraying exterior
Insulation layerHigh quaility rock wool board (with CE)
HeaterNickel chromium alloy heating wire
Power rating0.8kW1.2kW1.6kW2.0kW2.5kW
Exhaust holeφ35mm top(with function of test hole)
ControllerTemp. control modeTwo temperature section PID intelligent
Temp. setting modeTouch button setting
Temp. display modeB model: display on LED
BE model: display on  LCD
Timer0-9999min(with timing wait function)
Operation functionFixed temperature operation, fixed timing operation, auto stop.
Additional functionB model: Sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking, power-off parameter
memory
BE model: High precision digital independent temperature limiter,
sensor deviation correction, temperature overshoot
self-tuning, internal parameter locking, power-off
parameter memory
Sensorpt100
SpecificationInner Chamber
size(W*L*H)(mm)		310*310
*310		350*350
*350		400*360
*450		450*420
*450		500*450
*550
Exterior size
(W*L*H)(mm)		460*510
*695		500*550
*735		550*550
*840		590*610
*830		636*680
*915
Packing size
(W*L*H)(mm)		540*575
*855		580*615
*895		635*625
*995		680*685
*1000		710*730
*1100
Volume30L45L65L85L125L
Shelf number568811
Load per rack15kg
Shelf space40mm
(50/60HZ) Current ratingAC220V/
3.6A		AC220V/
5.5A		AC220V/
7.2A		AC220V/
10.5A		AC220V/
10.5A
NW/GW (kg）33/3737/4344/4950/6060/66
AccessoryShelf2
Shelf frame4
 optional accessoriesB model: Spare Shelf; BE model: Spare Shelf,RS485 Interface, Printer,
Program controller, U-disk storage; SUSS304 body, 3.5-inch color touch screen tmperature controller.
