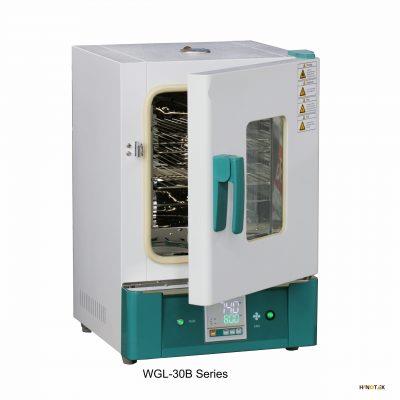

Forced Air Drying Oven (Used for drying, baking, wax, heat treatment)

Product characteristic:

1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.

2. PID controller, with over-temperature protection function.

3. With fan switch,LED digital display,high temperature blast motor.

4.New anti-hot handle



WGLL-BE series have the following characteristics other than the above functions

1. LCD temperature controller.

2. 4 grades speed fan, adjustable for different requirements.

3. Over-temperature protection system.

4. High precision digital independent temperature limiter.

5.304:SUS304 Stainless Steel Body.

Product Code: WGL-65B
Brand: Faithful
Availability: In Stock
Rs. 180,000 Rs. 200,000
You save Rs. 20,000 (10% Off)
Size
ModelWGL-
30B		WGL-
45B		WGL-
65B		WGL-
85B		WGL-
125B		WGL-
230B		WGL-
625B
WGLL-
30BE		WGLL-
45BE		WGLL-
65BE		WGLL-
85BE		WGLL-
125BE		WGLL-
230BE		WGLL-
625BE
WGLL-
30BE(304)		WGLL-
45BE(304)		WGLL-
65BE(304)		WGLL-
85BE(304)		WGLL-
125BE(304)

 Cycle ModeForced convection
FunctionTemp. RangeRT+10-300℃
Temp. Resolution
 Ratio		0.1℃
Temp. Motion±1℃
Temp. Uniformity±2.5%
StructureInner Chamber  Mirror Stainless Steel
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layerHigh quality rock wool board(with CE)
Heater Stainless steel heater
Power rating0.8kW1.2kW1.6kW2.0kW2.3kW3.0kW5.0kW
Exhaust holeφ35mmtop(with function of test hole)Rear
exhaust		Top double
exhaust
ControllerTemp. control
 mode		Two temperature section PID intelligent
Temp. setting  modeTouch button setting
Temp. display modeB model: Measuring temperature: display on the four digital tubes
 upper row, setting temperature: display on the lower row
BE model: Measuring temperature display on upper LCD screen，
 setting temperature  display on the lower row
Timer0-9999min(with timing wait function)
Operation functionFixed temperature operation, timing function, auto stop.
Additional functionB model: Sensor deviation correction, temperature overshoot self-
tuning, internal parameter locking, power-off parameter memory
 BE model: High precision digital independent temperature limiter, 4
grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature overshoot self-
tuning, internal parameter locking, power-off parameter memory
Sensorpt100
SpecificationInner Chamber size
(W*L*H)(mm)		310*310
*310		350*350
*350		400*360
*450		450*420
*450		500*450
*550		600*500
*750		660*760
*1250
Exterior size
(W*L*H)(mm)		450*500
*690		490*540
*730		540*550
*830		590*610
*830		640*640
*930		735*835*1115974*895*1677
Packing size
(W*L*H)(mm)		540*575
*855		580*615
*895		635*625
*995		680*685
*1000		710*730
*1100		857*885*12871061*1000*1885
Volume30L45L65L85L125L230L625L
Max Shelf number5688111711
Load per rack15kg
Shelf space40mm100mm
Power rating
(50/60HZ)		AC220V/
3.6A		AC220V/
5.5A		AC220V/
7.2A		AC220V/
9.0A		AC220V/
10.5A		AC220V/
13.6A		AC380V/
13.2A
NW/GW (kg）33/3737/4344/4950/5660/6694/120150/190
AccessoryShelf2
Shelf frame4
optional accessories

B model: Spare Shelf;

 BE model: Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; 3.5-inch color touch screen temperature controller
