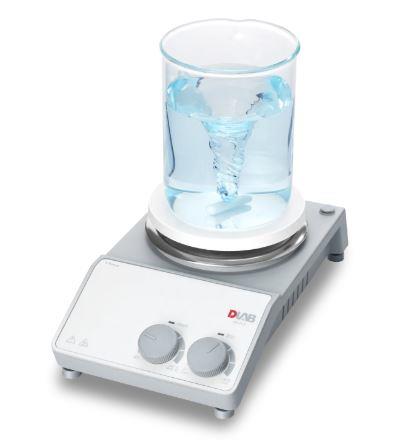

MS-H-S Security Analog Magnetic Hotplate stirrer

Brushless DC motor is maintenance free and explosion-proof
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
Work plate with ceramic coating provides good chemical-resistantperformance
Wide variety of accessories available to choose
Product Code: MS-H-S
Brand: Dlab
Availability: In Stock
Rs. 70,000
Cat.No.
8030211010
Work plate Dimension
Ø135mm（5 inch）
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
0-1500rpm
Speed display
Scale
Temperature display
Scale
Heating temperature range
Room Temp.-340℃
Temperature control accuracy
-
Temperature display accuracy
-
External temperature sensor
-
"Hot" warning
-
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
-
Timer function
-
Protection class
IP21
Motor rating input
18W
Motor rating output
10W
Power
530W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
160x280x100mm
Weight
2.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
